DIRECT NANO FILTRATION (dNF) SYSTEM

Hardness & Metals removal - COD/BOD/TOC removal - Color & Toxic substances removal - Waste water reuse

dNF - direct Nanofiltration membrane, the pioneer product of NX Filtration (Netherland), with advanced technology, excellent capability and european quality standards, creates the powerfull water treatment solutions, simple configuration but high effectiveness and realibility.

Direct Nanofiltration (dNF) membranes offer the unique combination of a low fouling hollow fiber configuration with the ability to remove organics and salinity (hardness) from water in one simple step. Other than a strainer, no further pre-treatment is required. dNF are produced with a patented layer-by-layer process, where multiple nano-scale layers are deposited on a membrane support. This method enables very precise and controlled rejection and flux properties of the membrane. A unique solution for troubled water.

DNF-80 NANOFILTRATION SYSTEM

dNF-80 Nanofiltration system are combination of dNF moduls (model WMC110 dNF-80 hoặc WMC200 dNF-80) on a skit, with fully piping arangement, electrical and controlling system, easily connection with other items of water treatment system.

SPECIFICATION

Material: PES Modified holow-fibre membrane, u-PVC SCH80 piping & accessories, SUS.304 pump...

Filtrate capability (MWCO): 800 Dalton (76% MgSO4 rejection)

Operation condition: 6.0 bar max, 40 oC max.

Environment tolerance: pH 2 - 12, chlorine 500ppm max.

APPLICATION

Whit excellent capability of filtration (remove almost TSS, organics, colloidals, color, toxic substances...), good chemical & oxidization tolerance, and less pre-treatment requirement, dNF System are universal water filtration solution. It can be applied to treat surface water (river, pond, lake...), underground water, city water, waste water... to produce a fresh water in only one step.

Download - WMC110 dNF80 Module

Download - WMC200 dNF80 Module

OILY WASTE WATER TREATMENT

with WMC200 dNF-80 system

DNF-40 NANOFILTRATION SYSTEM

dNF-40 Nanofiltration system are combination of dNF moduls (model WMC110 dNF-40 hoặc WMC200 dNF-40) on a skit, with fully piping arangement, electrical and controlling system, easily connection with other items of water treatment system.

SPECIFICATION

Material: PES Modified holow-fibre membrane, u-PVC SCH80 piping & accessories, SUS.304 pump...

Filtrate capability (MWCO): 400 Dalton (91% MgSO4 rejection)

Operation condition: 6.0 bar max, 40 oC max.

Environment tolerance: pH 2 - 12, chlorine 500ppm max.

APPLICATION

Whit excellent capability of filtration (remove almost TSS, organics, colloidals, color, toxic substances...), good chemical & oxidization tolerance, and less pre-treatment requirement, dNF System are universal water filtration solution. It can be applied to treat surface water (river, pond, lake...), underground water, city water, waste water... to produce a fresh water in only one step.

Download - WMC110 dNF40 Module

Download - WMC200 dNF40 Module

WASTE WATER REUSE

with WMC200 dNF-40 System

REVERSE OSMOSIS (RO) SYSTEM

Produce purified water - Salt (brine) removal - Water treatment for reuse.

Reverse osmosis filtration technology are more and more commonly due to its ability to remove almost substances in water, technology development helps RO membrane runs at lower pressure (less power consumption), higher stability (less scale formation) and lower cost for investment as well as operation.

SMALL RO SYSTEM

Small RO system are designed and produced by VATECH JSC, with fully pre-treatment (filters, chemical dosing and Ultra-filtration), piping & accessories, electrical & control, on a plug-and-play skit. This compact system are ready to use, make it easily and save time for installation as well as operation & maintenance.

SPECIFICATION

Small footprint, no intermediate tank, pumps and AC Filter / softener.

Total scale & oxidization protection by professional Hydrex chemicals

Ultrafiltration pre-treatment guarantees for long-term operation of RO system

Low-pressure RO membrane guarnatees for low cost operation

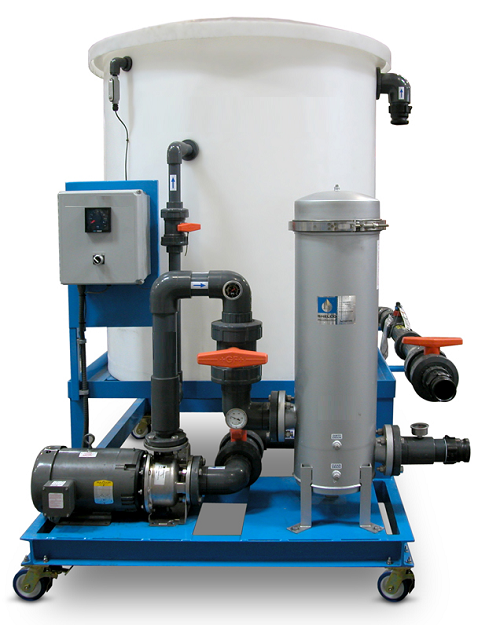

Clean-in-place (CIP) unit is equiped for system cleaning at site

APPLICATION

Small capacity RO systems are widely used in industrial plants, to treat high-quality water, bottled water, direct drinking water, and cooking water. The small capacity RO system of VATECH JSC is also perfectly suited to the pure filtered water needs of the smokeless industry, such as high-end restaurants, hotels, resorts & homestays...

With the use of Veolia's Hydrex chemical, which meets FDA requirements and regulations, VATECH's Industrial RO system fully meets the requirements of chemical safety used in food, beverage and pharmaceutical production.

RO SYSTEM - 20 M3/DAY

Industrial kitchen water treatment

INDUSTRIAL RO SYSTEM

The Industrial RO system designed and manufactured by VATECH JSC is the successor of technology from Pentair Water and Veolia Water, with the use of anti-scale chemicals and membrane protectants instead of traditional coal/softening filters. system, making the RO system compact, consuming less space, materials and installation time. The RO system with this configuration is trusted and used by many customers such as Dung Quat Oil Refinery, Toyota Motor Vietnam Factory, Suntory - Pepsico Factory, Canon Vietnam Factory...

SPECIFICATION

Compact system, no intermediate tank, no AC filter & softener

Antiscalant and anti-fouling of a broad spectrum RO membrane by using specialized Hydrex chemicals

Enhance RO membrane durability by using specialized Hydrex reducing chemicals

Prioritize the use of low pressure RO membranes, reducing system pressure and operating costs

Integrated membrane cleaning system (CIP) and specialized V.Clean membrane cleaning chemicals

APPLICATION

VATECH's Industrial RO system can be applied in industries and industrial plants, such as food and beverage, cosmetics, automobiles, motorcycles, electronics and refrigeration, heavy industrial plants...

With the use of Veolia's Hydrex chemical, which meets FDA requirements and regulations, VATECH's Industrial RO system fully meets the requirements of chemical safety used in food, beverage and pharmaceutical production.

RO SYSTEM - 250 M3/H

Treating process water

WATER TREATMENT EQUIPMENT AND MATERIALS

Ultrafiltration Membrane (UF) - Dosing pumps & online measuring devices

VATECH JSC cooperates with many domestic and foreign partners, develops products, equipments and supplies for the water industry, used in VATECH systems, and simultaneously deploys market development. Some of the featured product lines are as follows:

LITREE UF MODULE

ULTRAFILTRATION (UF) MODUL

VATECH selects high-end ultrafiltration membrane products from the world's leading membrane manufacturers, with big brands such as HYDRAcap (NX Filtration), Litree..., integrated into Modules according to the requirements of each customer. products, projects. The module can be assembled in Vietnam, or imported raw from the manufacturer, depending on the customer's request.

SPECIFICATION

Hollow fiber membrane filter housing, PES (NX Filtration) or PVC / PVDF (litree) material. The average filter slit size is 0.01 micron (50000 Dalton).

Pumps, technology pipes, operating valves and electric controls are integrated on the Module, allowing easy connection to other items of the water purification system.

APPLICATION

Since the filtration capability is limited to filtration and handling of large solids (> 0.01 microns), Ultrafiltration (UF) Membrane Modules are not usually used alone in water treatment technology. It can be applied as the final stage of the treatment chain (in water treatment of buildings, hotels, resorts...) or as an intermediate stage (pre-treatment for RO water purification systems).

EMEC DOSING PUMP & CONTROLLER

DOSING PUMP & ONLINE CONTROL SYSTEM

VATECH uses dosing pump and oline control system of EMEC Srl (Italy) in technology systems. Products of EMEC Srl belong to the high-class line, meeting IP.65 standards and European standards.

SPECIFICATION

Dosing pump: European standard, made in Italy, super durable teflon diaphragm, full range of capacity and pressure, IP.65 for outdoor use.

Online controller: Multi-parameter online meter, control water quality and support the operation of RO / NF / Cooling / Boiler systems.

APPLICATION

Dosing Pumps and Online Controllers are used in chemical supply and water quality control systems. The multi-criteria online controller, in addition to controlling water quality, can also control operations and provide information to the central control system...

Download - VCO Dosing Pump Datasheet
